Monitoring the Photodegradation of PVC Thin Films Containing Schiff Base Using FTIR Spectroscopy

Ali Hassan1 , Dina S. Ahmed2 , Riyadh Noaman3 and Emad Yousif4*

1Department of Clinical Laboratory Investigations Techniques, Islamic University, Najaf, Iraq .

2Department of Medical Instrumentation Engineering, Al-Mansour University College, Baghdad, Iraq .

3Chemical and Petrochemical Research Center, Corporation of Research and Industrial Development, Ministry of Industry and Minerals, Baghdad, Iraq .

4Department of Chemistry, College of Science, Al-Nahrain University, Baghdad, Iraq .

Corresponding author Email: emad_yousif@hotmail.com

DOI: http://dx.doi.org/10.13005/OJPS04.01.04

Metal complexes of Cu(II), Cd(II), Zn(II), Ni(II) and Sn(II) containing Schiff base derivative (L) as a ligand (ML2) utilized as additives to avoid PVC films photodegradation during UV irradiation (λmax= 313 at a light intensity = 7.75 × 10-7 einstein dm-3 sec-1). Irradiation of PVC films with UV light due to changes in infrared spectra.

Metal Complexes; Photodegradation; Polyvinyl Chloride; PVC Films; Schiff Base Derivative

Copy the following to cite this article:

Hassan A, Ahmed D. S, Noaman R, Yousif E. Monitoring the Photodegradation of PVC Thin Films Containing Schiff Base Using FTIR Spectroscopy. Oriental Jornal of Physical Sciences 2019; 4(1).

DOI:http://dx.doi.org/10.13005/OJPS04.01.04

Copy the following to cite this URL:

Hassan A, Ahmed D. S, Noaman R, Yousif E. Monitoring the Photodegradation of PVC Thin Films Containing Schiff Base Using FTIR Spectroscopy. Oriental Jornal of Physical Sciences 2019; 4(1). Available from: https://bit.ly/3tAbe15

Download article (pdf)
Citation Manager
Publish History

Article Publishing History

Received: 05-02-2019
Accepted: 19-06-2019

Introduction

Organic polymers (mainly synthetic plastics) are widely utilized in different industrial areas,1 such as marine industries, civil engineering materials automotive fields, aerospace composites, and protective coatings,2,3 and the needs for these materials are increasing. The high polymers now occupy second place behind steel in the scale of most important materials groups.4 PVC has individual mechanical and physical properties and is almost used as a thermoplastic material.5 It has several outdoor usage, fundamentally in construction materials.6,7 PVC polymeric materials come next to polyolefins in global production and consumption terms8; however, due to its inherent brittleness and thermal instability, the plasticizers utilized and heat stabilizers are fundamental for PVC.9 There are two kinds of PVC rigid and flexible. The flexible PVC utilized in several usages as a rubber substitute. While, rigid PVC utilized in building constructions.10 The main problems associated with utilize of polymers, is their photodegradation.11 All materials are subjected to weathering.12 The polymer degradation occurrence recognized by its effects on the appearance and properties. The common effects are embrittlement, discoloration, tackiness, loss of surface gloss, and crazing or chalking of surface.13 Polyolefins, poly(vinyl chloride) (PVC), polystyrene (PS), aliphatic and aromatic polyamides, polyurethanes, diene rubbers, and polymeric coatings, have an outdoor lifetime of less than a year when compounded without any photostabilizer added.14 When exposed to natural weathering, PVC deteriorates and becomes increasingly colored and brittle, with a steady decrease in mechanical properties such as tensile strength, elasticity, and impact resistance.15 The main factors influencing on PVC degradation products include oxygen, humidity, light, mechanical stress, aggressive media, and ionizing radiation; all are accelerated by increasing temperature. The degradation leads to changes in basic properties as a result of simultaneous chemical and physical processes, causing changes in chemical composition and structure.16 Dehydrochlorination data can be used to follow changes in the stability of rigid PVC during outdoor exposure.17 To inhibit or reduce the photodegradation, inorganic and organic UV absorbers, as well as stabilizers have been utilized.18,19 Polymer photostabilization continues to be a rapidly advancing area of scientific and technological interest. When the polymer contains a stabilizer, the rate of oxidation is reduced. Stabilizers reduce but do not completely inhibit the oxidation. Any consideration of polymer stabilization has to take in account some basic.20 This paper, utilizing a simple procedure to synthesis different divalent metal complexes containing Schiff base and study their PVC photostabilization efficiency.

Experimental

Synthesis of Metal Complexes

The complexes Cu(L)2, Cd(L)2, Zn(L)2, Ni(L)2 and Sn(L)2 (Figure 1) were synthesized as reported.24




Figure 1: Structure of M(L)2
Click here to view Figure

Films Preparation

In chloroform solvent, PVC was dissolved with metals complexes to form PVC films.21,22

Photodegradation Rate of Polymeric Films by FTIR Spectrophotometry

The photodegradation degree of polymeric films was monitored with FTIR spectra. The bands appearance in 1772 and 1724 cm-1, is refer to carbonyl groups formation. At different times of irradiation the photodegradation progress was studied by changes in carbonyl peak intensity; this called the "band index method",23 as:

Is = As/Ar …… (1)

Results and Discussion

Metal complexes of Cu(II), Cd(II), Zn(II), Ni(II) and Sn(II) with Schiff base ligand (L), were used to enhance the PVC photostabilization. The PVC films have been irradiated with wavelength light, λ=313 nm led to changes in their IR spectra. (Figure 2) explain the photodegradation mechanism of PVC in presence of oxygen.24




Figure 2: The general process for PVC photodegradation.
Click here to view Figure


The PVC photo-oxidation can be described by the sequence below25-27:

1. The photolytic formation of polyenic series with growing of conjugation lengths by multistep photochemical excitations. It started by chromophoric defects excitation with α-chlorinated dienes structure.

The band at 1770 cm-1 can be attributed to the formation of acid chloride. This acid chloride is formed by β-scission of the alkoxy radical with scission of the macromolecular chain. This product is then substituted in the b position by a chlorine atom and corresponds to the structure33:

2. The photo-oxidation started by Cl* created over with polyenic series and produces to create the following products: α,αʹ-dichloroketones, acid chlorides and β-chlorocarboxylic acid.

3. PVC cross-linking by association of in-chain macroradicals.

Polymer degradation may cause by heat, light, radiation (radiodegradation), mechanical action, or by algae, bacteria (biodegradation).28 UV radiation hurtful to polymers, a phenomenon recognized as photodegradation is started which affects the mechanical, chemical and physical properties of the polymers.29-31

With a view to investigate additives photochemical activity for PVC photostabilization, the polyene, hydroxyl and carbonyl indices were detected upon irradiation time by IR spectrophotometry. The polyene, hydroxyl and carbonyl groups absorption was utilized to follow up the polymer degradation extent upon irradiation.32

The presence of Cu(L)2, Cd(L)2, Zn(L)2, Ni(L)2 and Sn(L)2 show minimize the growth rate of indices against irradiation time upon consideration to PVC (blank). These additives worked as PVC photostabilizers. However, from the growth rate of polyene, hydroxyl and carbonyl indices, the Ni(II) complex is the most active photostabilizer, followed by Sn(II), Zn(II), Cd(II) and Cu(II) complexes, as shown in Figures 3, 4 and 5.

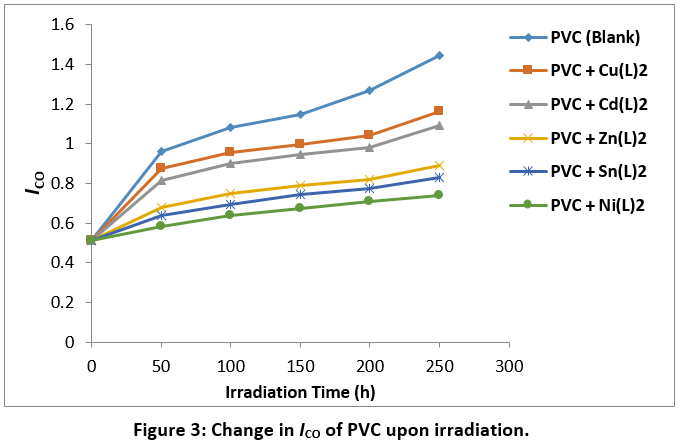

Figure 3: Change in ICO of PVC upon irradiation.
Click here to view Figure

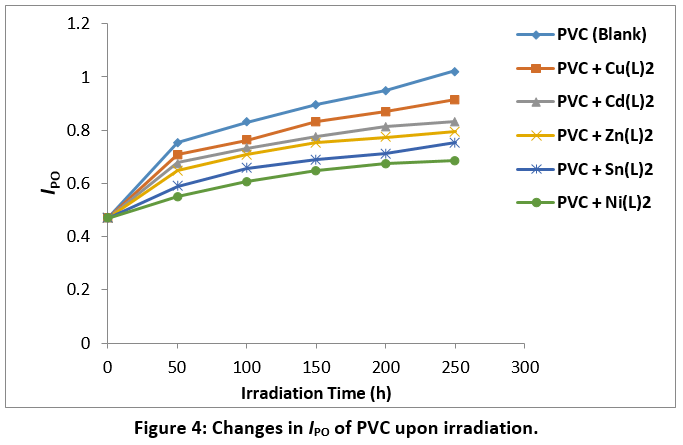

Figure 4: Changes in IPO of PVC upon irradiation.
Click here to view Figure

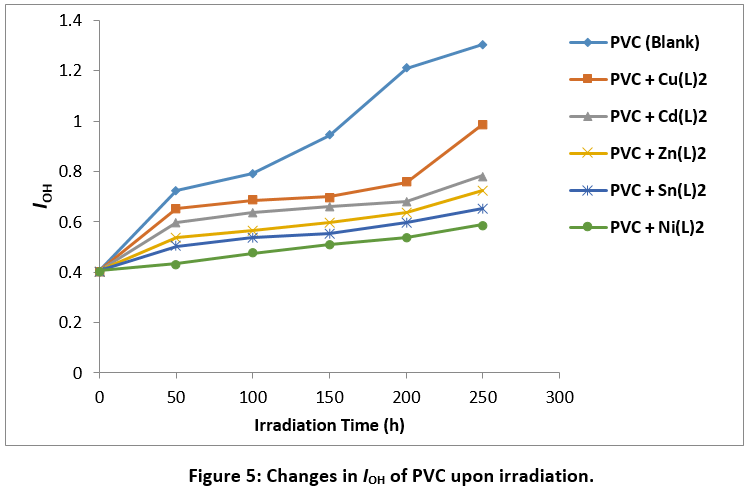

Figure 5: Changes in IOH of PVC upon irradiation.
Click here to view Figure


Conclusion

The PVC films photostabilization which containing Schiff base derivatives have been investigated. The additives act as effective PVC photostabilizers. According to reduction in indices, the additives take the following arrangement in photostabilization:

Increasing activity

Acknowledgements

The project was supported by Islamic University and Al-Nahrain University

References

  1. Zarras P., Goodman P.A., Stenger-Smith J.D., Functional polymeric coatings: Synthesis, properties, and applications. Res. Perspect. Funct. Micro Nanoscale Coat., (2016).
  2. Singh P., Kharwar P.K., Gautam V.K., Yadav M.S.K., Physical and mechanical characterization of epoxy based polymer composites for marine industry, Imp. J. Interdiscip. Res., 2, 608-613, (2016).
  3. Nikafshar S., Zabihi O., Ahmadi M., Mirmohseni A., Taseidifar M., Naebe M., The Effects of UV Light on the Chemical and Mechanical Properties of a Transparent Epoxy-Diamine System in the Presence of an Organic UV Absorber, Materials, 10, 180-198, (2017).
    CrossRef
  4. Torikai A., Hasegawa H., Accelerated photodegradation of poly(vinyl chloride), Polymer Degradation and Stability, 63, 441-445, (1999).
    CrossRef
  5. Huang Z., Ding A., Guo H., Lu G., Huang X., Construction of nontoxic polymeric UV-absorber with great resistance to UV-photoaging, Sci. Rep., (2016).
    CrossRef
  6. Zhang X., Zhao T., Pi H., Guo S., Mechanochemical preparation of a novel polymeric photostabilizer for poly(vinyl chloride), J. Appl. Polym. Sci., 116, 3079-3086, (2010).
    CrossRef
  7. Nicholson J.W., The Chemistry of Polymers, 3rd ed.; RSC Pub.: Cambridge, UK, (2012).
  8. Burgess, R.H. Manufacture and Processing of PVC; Applied Science Publishers: London, UK, 1982.
  9. Lee S., Park M.S., Shin J, Kim Y.W., Effect of the individual and combined use of cardanol-based plasticizers and epoxidized soybean oil on the properties of PVC, Polymer Degradation and Stability, 147, 1-11, (2018).
    CrossRef
  10. Allsopp M.W., Vianello, G. Poly(Vinyl Chloride). In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH:Weinheim, Germany, Volume A21, (1992).
  11. Cooray B., Scott G. The effect of thermal processing on PVC–VI. The role of hydrogen chloride. Eur. Polym. J. 16, 169–177, (1980).
    CrossRef
  12. Rabek T.F., Photodegradation of Polymers: Physical Characteristics and Applications; Springer: Berlin/Heidelberg, Germany, (1996).
    CrossRef
  13. Fritscher C., Degradable polymer, Int. J. Mater. Prod. Technol., 9, 482-495, (1994).
  14. Ranby, B., Basic Reactions in the Photodegradation of Some Important Polymers, J. M. S. Pure Appl. Chem., A30 (9, 10), 583-594, (1993).
    CrossRef
  15. Feldman D.,Barbalata A., Synthetic Polymers, Chapman & Hall, London, (1996).
  16. Jakubowicz I., Yarahmadi N., Gevert T., Effects of accelerated and natural ageing on plasticized polyvinyl chloride (PVC), Polym. Degrad. Stab., 66, 415-421, (1999).
    CrossRef
  17. Roux G., Eurin Ph. A., Indentation test for predicting embrittlement of rigid PVC by weathering, J. Macromol. Sci. Phys. B 20, 505-517, 1981.
    CrossRef
  18. Devi R.R., Maji, T.K., Effect of nano-zno on thermal, mechanical, UV stability, and other physical properties of wood polymer composites., Ind. Eng. Chem. Res., 51, 3870-3880, (2012).
    CrossRef
  19. Aloui F., Ahajji A., Irmouli Y., George B., Charrier B., Merlin A., Inorganic UV absorbers for the photostabilisation of wood-clearcoating systems: Comparison with organic UV absorbers., Appl. Surf. Sci., 253, 3737-3745, (2007).
    CrossRef
  20. Forsthuber B., Schaller C., Grüll G., Evaluation of the photo stabilising efficiency of clear coatings comprising organic UV absorbers and mineral UV screeners on wood surfaces., Wood Sci. Technol. 47, 281-297, (2013).
    CrossRef
  21. Yousif E., Ahmed D.S., Ahmed A.A., Hameed A.S., Muhamed S.H., Yusop R.M., Redwan A., Mohammed S.A. The effect of high UV radiation exposure environment on the novel PVC polymers. Env. Sci. and Poll. Res. 26, 9945-9954, 2019.
    CrossRef
  22. Yousif E., Asaad N., Ahmed D.S., Mohammed S.A., Jawad A.H., A Spectral, Optical, Microscopic Study, Synthesis and Characterization of PVC Films Containing Schiff Base Complexes. Baghdad Sci. J. 16, 2019.
    CrossRef
  23. Alotaibi, M.H., El-Hiti G.A., Yousif E., Ahmed, D.S., Hashim H., Hameed A.S., Ahmed, Evaluation of the use of polyphosphates as photostabilizers and in the formation of ball-like polystyrene materials. J. of Polym. Res. 26, 161, 2019.
    CrossRef
  24. Shyichuk A.V., White J.R. Analysis of chain-scission and crosslinking rates on the photooxidation of polystyrene. J. Appl. Polym. Sci. 77, 3015–3023, (2000).
    CrossRef
  25. Veronelli M., Mauro M., Bresadola S., Influence of thermal dehydrochlorination on the photooxidation kinetics of PVC samples, Polym. Degrad. Stab., 66, 349-357, (1999).
    CrossRef
  26. Gardette J.L., Lemaire J., Prediction of the long‐term outdoor weathering of poly(vinyl chloride), J. Vinyl Technol, 15, 113-118, (1993).
    CrossRef
  27. Gardette J.L., Lemaire J., Reversible discoloration effects in the photoaging of poly(vinyl chloride), J. Vinyl. Addit. Technol., 3, 107-110, (1997).
    CrossRef
  28. Feldman D., Polymer Weathering: Photo-Oxidation, J. Polymers and the Environment, 10, 162-173, (2002).
    CrossRef
  29. Ghasemi-Kahrizsangi, A.; Neshati, J.; Shariatpanahi, H.; Akbarinezhad, E. Improving the UV degradation resistance of epoxy coatings using modified carbon black nanoparticles. Prog. Org. Coat., 85, 199-207, (2015).
    CrossRef
  30. Zhang Z., Wang S., Zhang J., Large stabilizing effect of titanium dioxide on photodegradation of PVC/α-methylstyrene-acrylonitrile copolymer/impact modifier-matrix composites, Polym. Compos., 35, 2365–2375, (2014).
    CrossRef
  31. Pospil J., Nepurek S. Photostabilization of coatings. Mechanisms and performance. Prog. Polym. Sci. 25, 1261–1335, (2000).
    CrossRef
  32. Scott G. Mechanism of Polymer Degradation and Stabilization; Elsevier: New York, NY, USA, 1990.
  33. Zhang X., Pi H., Guo S. Photostabilizing Efficiency of Ultraviolet Light Stabilizers for Rigid Poly(vinyl chloride) Against Photo-Oxidation. Polym. Eng. and Sci. (2012).
    CrossRef
